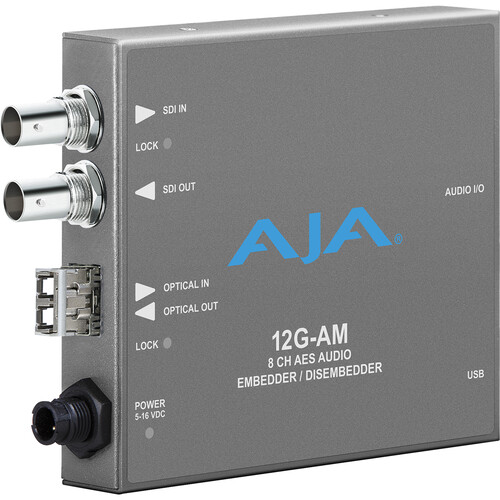

AJA 12G-AM 12G-SDI 8-Channel AES Audio Embedder/Disembedder with Fiber Options

No reviews yet

SKU: EMB-AJA-12GAM-AES

₹187,891 ₹227,471 -17% OFF (incl. GST @ 18%)

✓ In Stock (0 available)

♡ Sign in to save to Wishlist

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options. AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable. The 12G-AM automatically detects and configures the input video standard.

AJA 12G-AM Overview

The 12G-AM-T 12G-SDI 8-Channel AES Audio Embedder/Disembedder with LC Fiber Tx SFP from AJA is an 8-channel AES audio embedder/disembedder mini-converter with support for 12G-SDI input and output up to DCI/UHD 4K.

This fiber model offers a single-link LC fiber I/O transmitter to transmit video over long distances. AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio from the breakout cable. The 12G-AM-T automatically detects and configures the input video standard. The supplied XLR breakout cable offers eight channels in and eight channels out over eight XLR connectors.

12G-SDI 8-Channel AES Embedder/Disembedder
12G-SDI Input and Output up to 4K/UltraHD
8-channel balanced AES audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
AES audio Disembedding is always functional with four AES outputs
AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
Selectable AES audio levels
Supports HDR pass-through
Automatically detects and configures the input video standard
1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
Small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
USB connectivity via AJA Mini-Config software
DIP Switch configuration
5-16 VDC Power
Five-year warranty

Video Formats	(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94 RGB and YCbCr, 4:4:4/4:2:2, 10-bit Note: Raster and frame rate dependent. Please see 12G-AM Video Formats in Documents and Manual.
Video Input Digital	1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K Single Link 3G-SDI Level A or B DL, SMPTE 425
Fiber Input(12G-AM-R, 12G-AM-TR)	1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Wavelength: Rx 1260 nm (min), 1620 nm (max) Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps) Overload Power: -2 dBm (min)
Fiber Input (12G-AM-R-ST)	1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082 Wavelength: Rx 1260 nm (min), 1620 nm (max) Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps) Overload Power: -2 dBm (min)
Video Output Digital	1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K Single Link 3G-SDI Level A or B-DL, SMPTE 425
Fiber Output (12G-AM-T, 12G-AM-TR)	1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max) Optical Power: -5 dBm (min), 0.5 dBm (max) Extinction Ratio: 5.4 dB (min)
Fiber Output (12G-AM-T-ST)	1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max) Optical Power: -5 dBm (min), 2 dBm (max) Extinction Ratio: 3.4 dB (min)
Cable Equalization (Belden 1694A coax)	12 Gbps, 65m 6 Gbps, 125m 3 Gbps, 190m 1.5 Gbps, 200m 270 Mbps, 405m
Video Path Delay	Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input. Video Latency, time measured between video input and video output connector: 12G = 3.2 µsec 6G = 3.2 µsec 3G level A = 3.2 µsec 3G level B-DL = 6.3 µsec HD (1.5 Gb) = 6.3 µsec SD (270 Mb) = 17.2 µsec
Audio Inputs and Outputs	AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors (AES3 110 ohm) 4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats	AES3-2003
Embedded Audio	SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16-channels supported Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.
Embed Path Audio Latency	Embed Path Audio Latency (Time measured between audio input and video output connector): 1500 µsec (SRC ON) 400 µsec (SRC OFF)
Disembed Path Audio Latency	(Time measured between video input and audio output connector): 210 µsec
User Interface	External DIP switch USB port used with Mini-Config software application to configure the device via PC/Mac
Size (w x d x h)	5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Weight	0.6 lb (0.3 kg)
Power	+5-16VDC, 10 watts, power supply required, included with purchase
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)

12G-AM Series Manual v1.5r1

• AJA 12G-SDI 8-Channel AES Audio Embedder/Disembedder with LC Fiber Tx SFP
• Universal Power Supply
• International Power Plug Set
• XLR Breakout Cable
• Limited 5-Year Manufacturer Warranty
