AJA 3G-AMA-R0 3G-SDI 4-Ch Analog Audio Embedder/Disembedder Mini-Converter
No reviews yet
SKU: EMB-AJA-3GAMARO-ANA
Options
✓ In Stock (0 available)
♡ Sign in to save to WishlistThe 3G-AMA is a 4-channel analog audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.
AJA 3G-AMA Overview
Embed or disembed up to four channels of SDI audio with the AJA 3G-AMA Mini Converter. The 3G-AMA includes a breakout cable which can provide up to four channels of XLR analog audio input or output depending on how the unit is configured. The 3G-AMA can be set up to accept four channels of balanced XLR audio to be embedded in an SDI video feed, or to disembed four channels of digital SDI audio and output them as analog signals via the four XLR output cables. The output SDI signal is re-clocked to preserve the signal integrity over long cable runs.

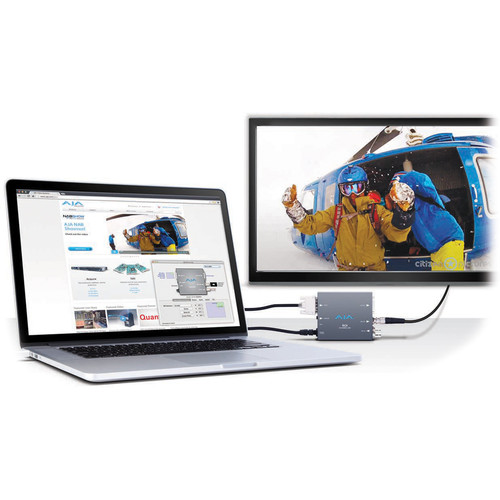

Setting the 3G-AMA up is made simple with AJA's free software solution, MiniConfig. The 3G-AMA connects to your computer running MiniConfig with an included USB 2.0 cable enabling your computer to access the unit's internal programming so you can set it up for your specific workflow.
- 3G-SDI embedder/disembedder
- 4-channel balanced analog audio I/O
- Supplied XLR breakout cable
- USB connectivity via AJA Mini-Config software
- Supports HDR pass-through
- Dipswitch configuration
- +5-20VDC Power
- • AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
- • Breakout Cable
- • Universal Power Supply
- • Limited 5-Year Manufacturer Warranty
