AJA ADA4 4-Channel Bidirectional Audio A/D & D/A Converter
No reviews yet
SKU: CON-AJA-ADA4-4CBA
✓ In Stock (0 available)
♡ Sign in to save to WishlistThe ADA4 is a 4-channel converter that can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D and 2-channel D/A, or an AES synchronizer.
AJA ADA4 Overview

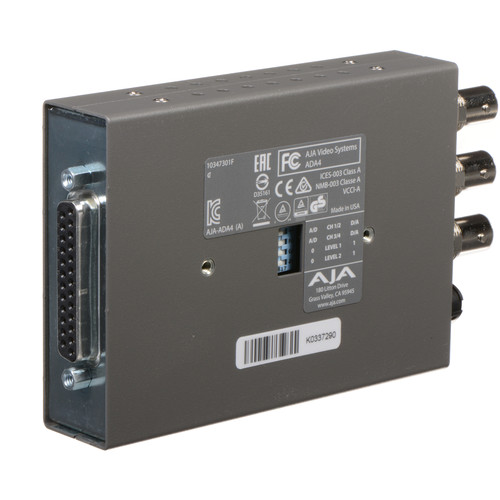

AJA's 4-Channel Bi-Directional Audio A/D & D/A Converter allows you to convert between balanced analog and AES/EBU digital audio. It can be configured as a 4-channel A/D converter, 4-channel D/A converter, 2-channel A/D and 2-channel D/A converter, or an AES sychronizer. An included XLR breakout cable provides audio connections for ADA4, allowing 8 channels of AES audio input and output while keeping the overall size of the Mini-Converter compact and portable. Audio levels are configurable via DIP switch control. The ADA4 also accepts an AES11, worldclock, or video sync/color black reference input for synchronization. Reference input and synchronization are automatic. For power, the Mini-Converter comes with a universal power supply with international plug connections for use in wall sockets around the world.
- Simultaneous A/D and D/A, or AES Synchronizer
- Full-time AES11 low jitter reference output
- Up to 4 channels of balanced analog to AES/EBU audio
- Up to 4 channels of AES/EBU to balanced analog audio

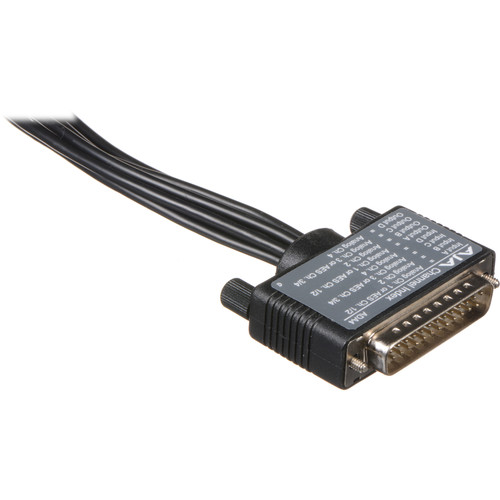

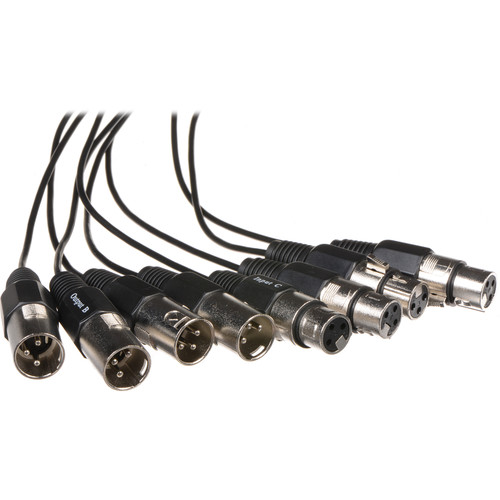

- Supplied XLR breakout cable
- AES11/Wordclock/Tri-level Sync/Color Black Reference Loop
- Adjustable audio levels
- Sample Rate Conversion between 96 kHz and 48 kHz
- Dipswitch configuration
- 5-18VDC Power (included with purchase)
| Audio I/O Analog |
Balanced, XLR, one channel per XLR connector |
| Audio I/O AES |
Balanced 110 ohm, XLR, two channels per XLR connector |
| Audio Levels Analog (with Respect to Full Scale Digital) |
+24dBu (SMPTE RP155), +18dBu (EBU R68), +15dBu (Germany), +10dBV (consumer +12.2 dBu) |
| Audio Converters |
24-bit, 48/96 KHz |
| User Controls |
External Dipswitch: |
| Reference Loop |
75 Ohm, unterminated, HD/SD Sync, AES-11, or Wordclock (48/96 KHz) |
| Size (w x d x h) |
5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm) |
| Power |
+5-18VDC, 6 watts. Power supply required, included with purchase |
- • AJA 4-Channel Bi-Directional Audio A/D & D/A Converter
- • AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- • Limited 5-Year Manufacturer Warranty
