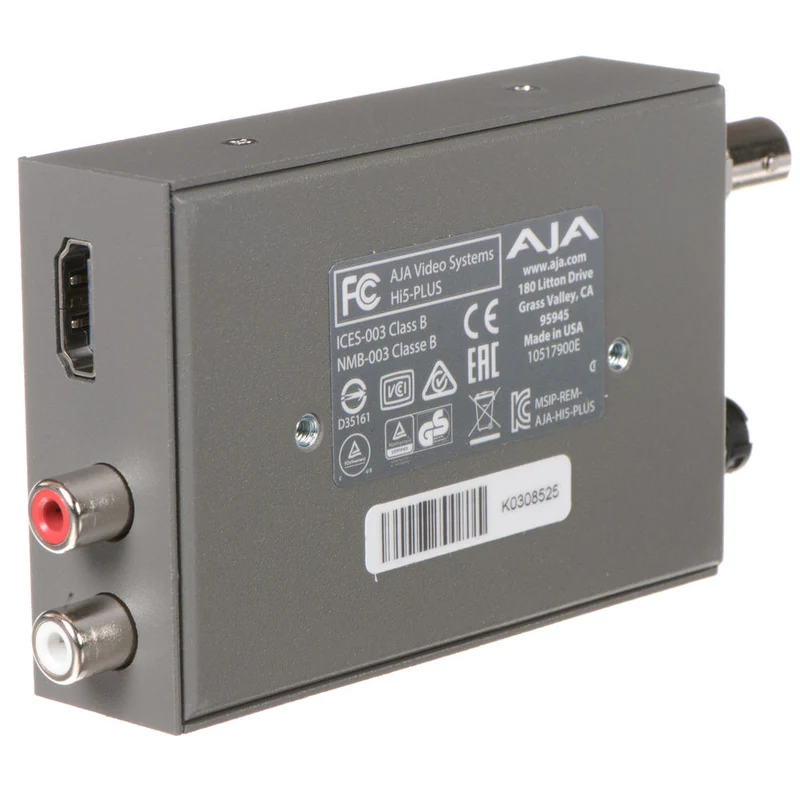

AJA HI5-PLUS-R1 3G-SDI to HDMI with PsF to P support, Includes 1 Meter HDMI Cable

HI5-PLUS - Overview

3G-SDI to HDMI Mini-Converter!

Bring HDMI and 3G-SDI devices together with AJA's Hi5-Plus for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Hi5-Plus is AJA's next generation SDI-to-HDMI Mini-Converter for integrating HDMI monitors into professional SDI workflows with USB setup. When used with a compatible HDMI monitor, Hi5-Plus outputs a 30-bit Deep Color RGB signal that allows for incredible color representation. The 3G-SDI input on Hi5-Plus allows extremely high-quality signal representation through to the HDMI output for use with RGB workflows where image quality is critical.

The Hi5-Plus integrates up to 16-channels of embedded SDI audio that are supported on input and can pass 8-channels of embedded HDMI audio on the output with audio delay from 0 to 7 frames for synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

HDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF so the Hi5-Plus converts any incoming 1080PsF signals to1080p for compatibility with modern HDMI monitors.

• 3G-SDI to HDMI 1.4
• Easily integrate HDMI devices into SDI workflows
• 3G capability for high data rate signals
• Compact size fits easily in small spaces
• 16-channel embedded SDI and 8-channel HDMI audio
• 2-channel RCA analog audio output
• Configure via USB port and supplied Mini-Config software
• Five year warranty
