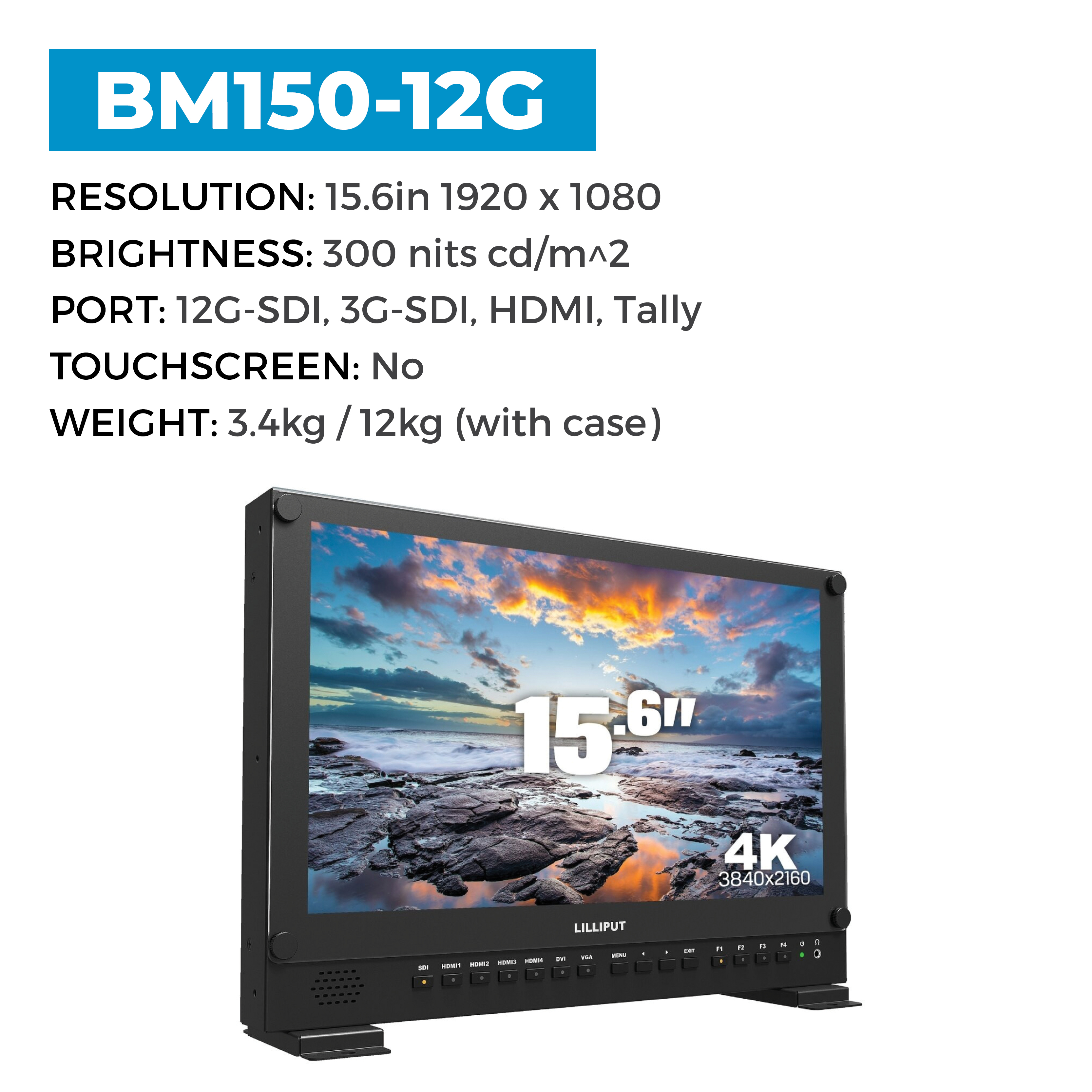

Lilliput BM150-12G 15.6" 12G-SDI 4K IPS Monitor (V-Mount, 6 RU)

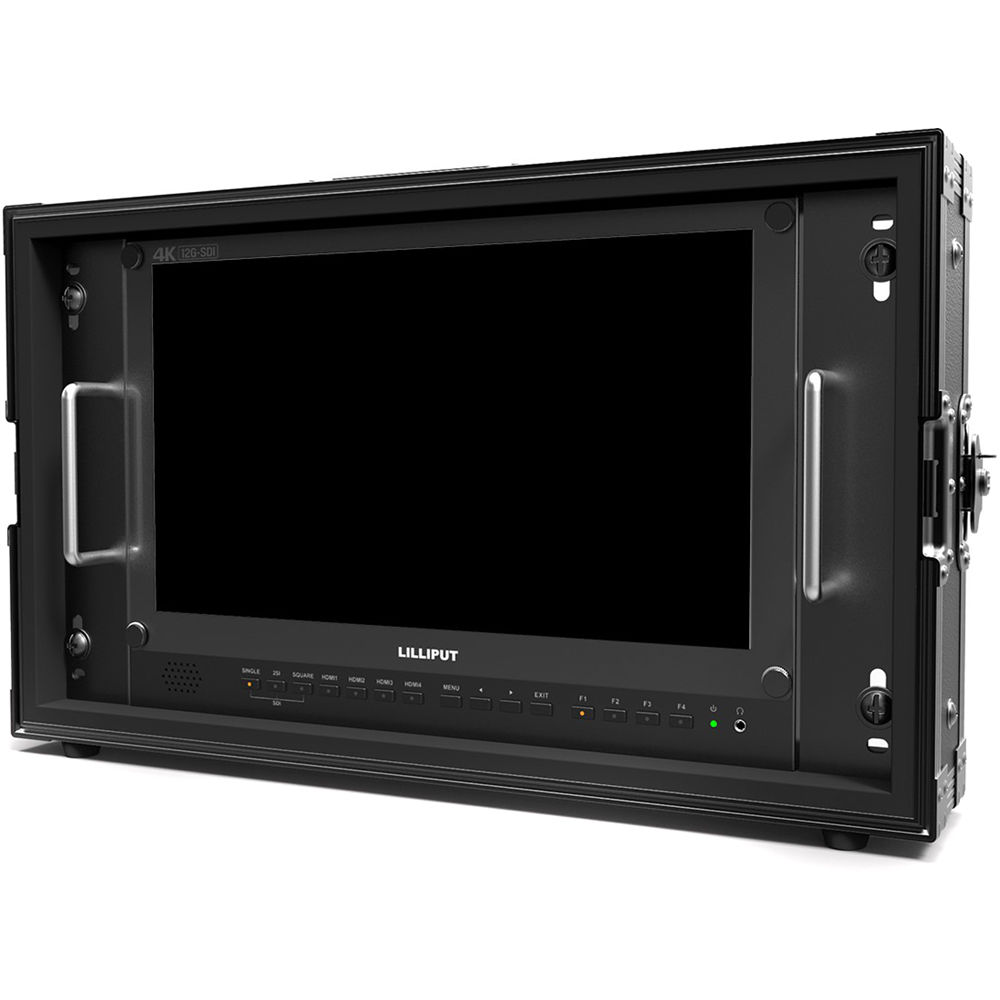

The 15.6" 12G-SDI 4K IPS Monitor from Lilliput provides you with UHD 4K 3840 x 2160 resolution and a 330 cd/m2 brightness, along with a 1000:1 contrast ratio and wide 176 x 176° viewing angle. The integrated V-mount battery plate allows for longer-lasting runtimes. The monitor fits inside an included carry case for easy transportation and location work. At 6 RU tall, you can also mount it on a rack for a more permanent installation.

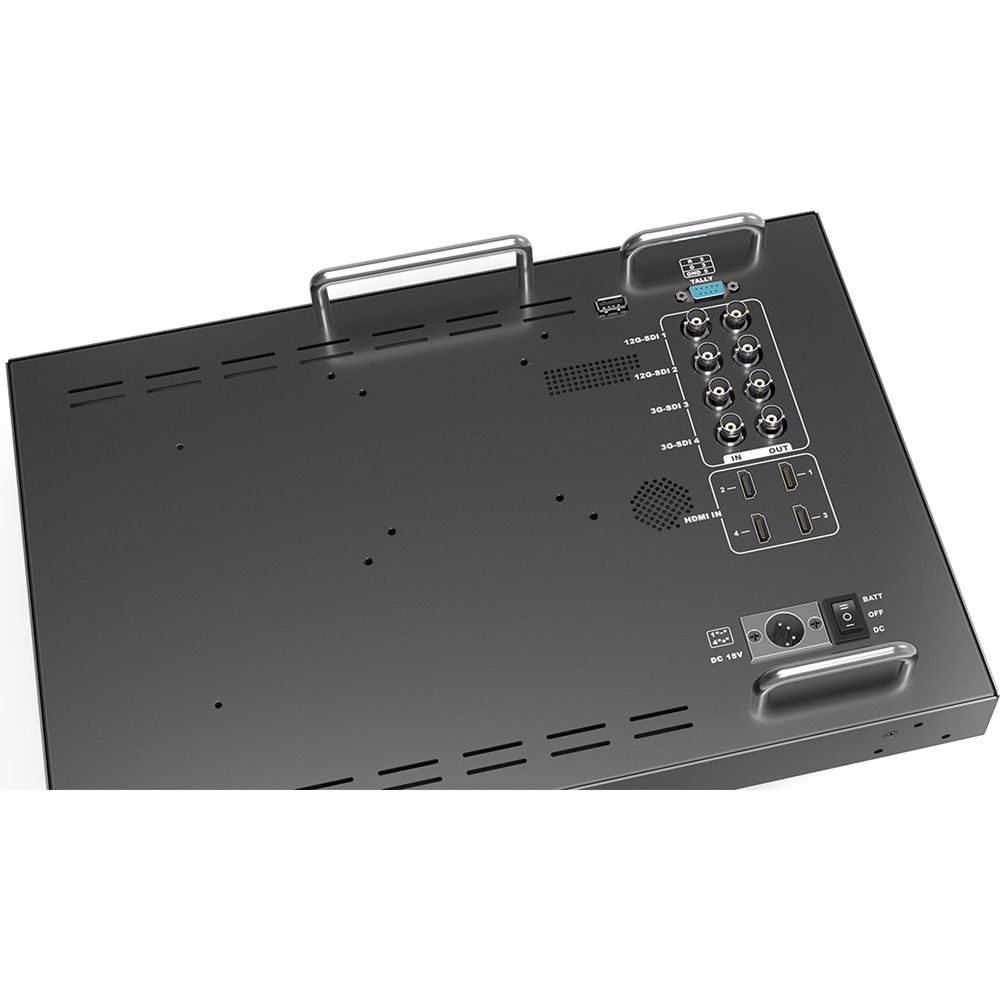

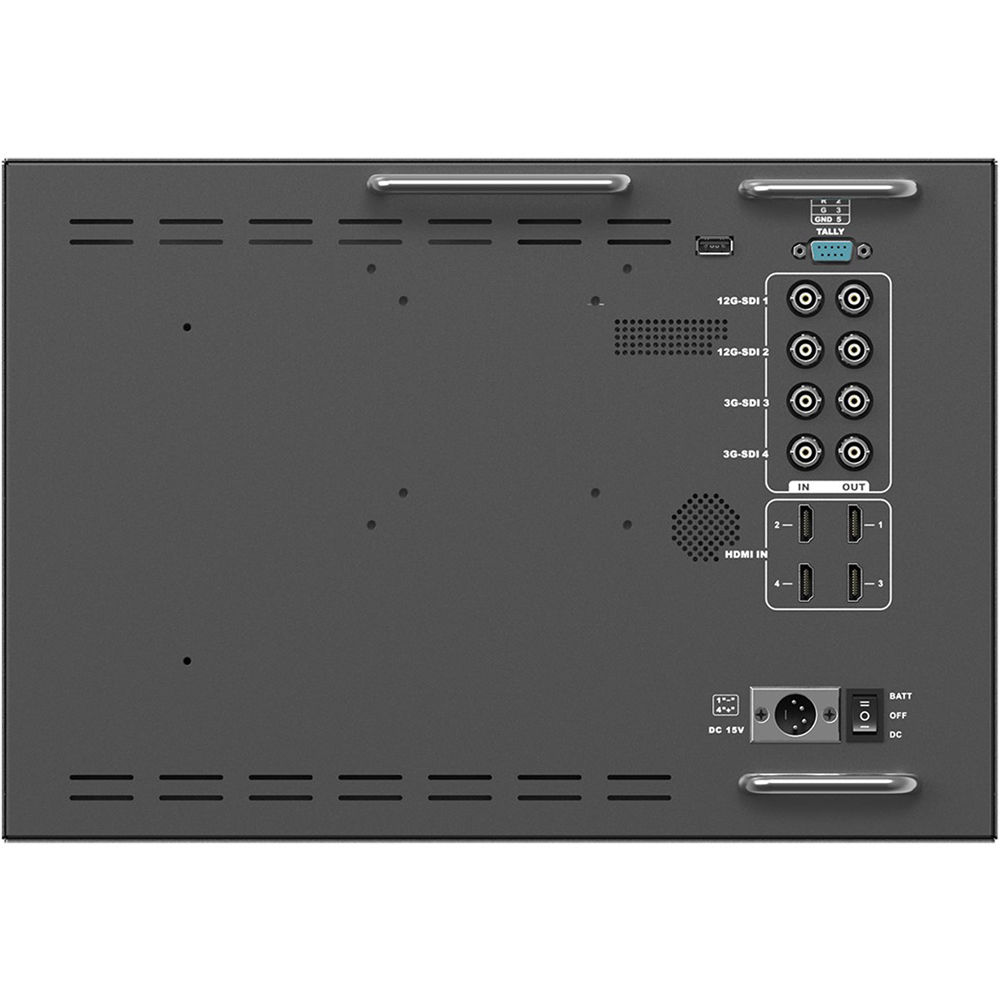

The monitor features two each 12G-SDI and 3G-SDI inputs with loop-through outputs, an HDMI 2.0 and three HDMI 1.4 inputs, and a tally input. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link. The monitor supports quad-view, false color, peaking, check field, image flip, overscan, underscan, image freeze, a 16:9 aspect ratio, center marker, screen marker, and color temperature functions.

12G-SDI Dual/Quad Link

Complies with ST425-3 and ST425-5 standards. Allows for Square Division and Sample Interleave at 4K mode.

12G-SDI Single Link

Complies with ST2081-10 and ST2082-10 standards.

4K HDMI Signal Inputs

Compatible with HDMI 2.0 and HDMI 1.4 signals.

Auxiliary Functions

• Provides auxiliary functions including: Quad-view
• False color
• Peaking
• Check field
• Image flip
• Overscan
• Underscan
• Image freeze
• Center marker
• Screen marker
• Color temperature

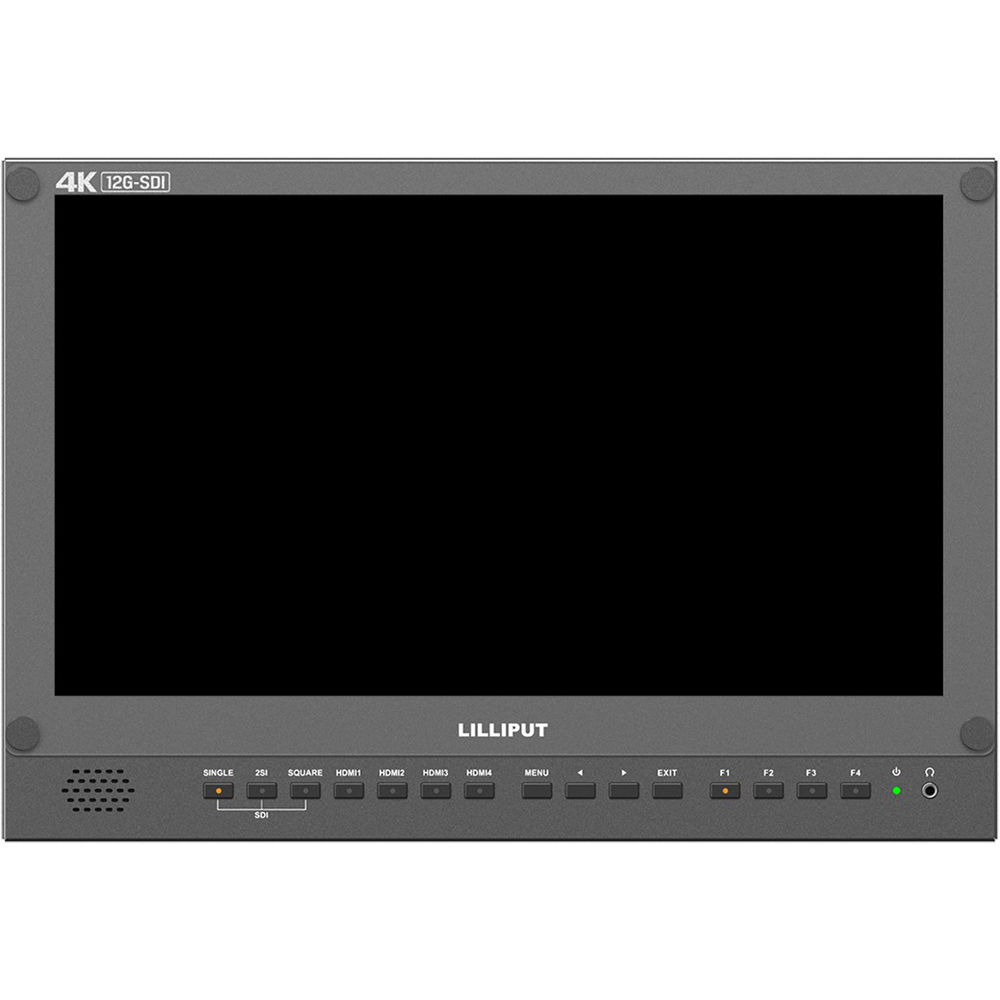

1. 15.6" 4K Display
2. 176 x 176° Viewing Angle
3. 330 cd/m² Brightness
4. 12G-SDI, 3G-SDI, HDMI & Tally Inputs
