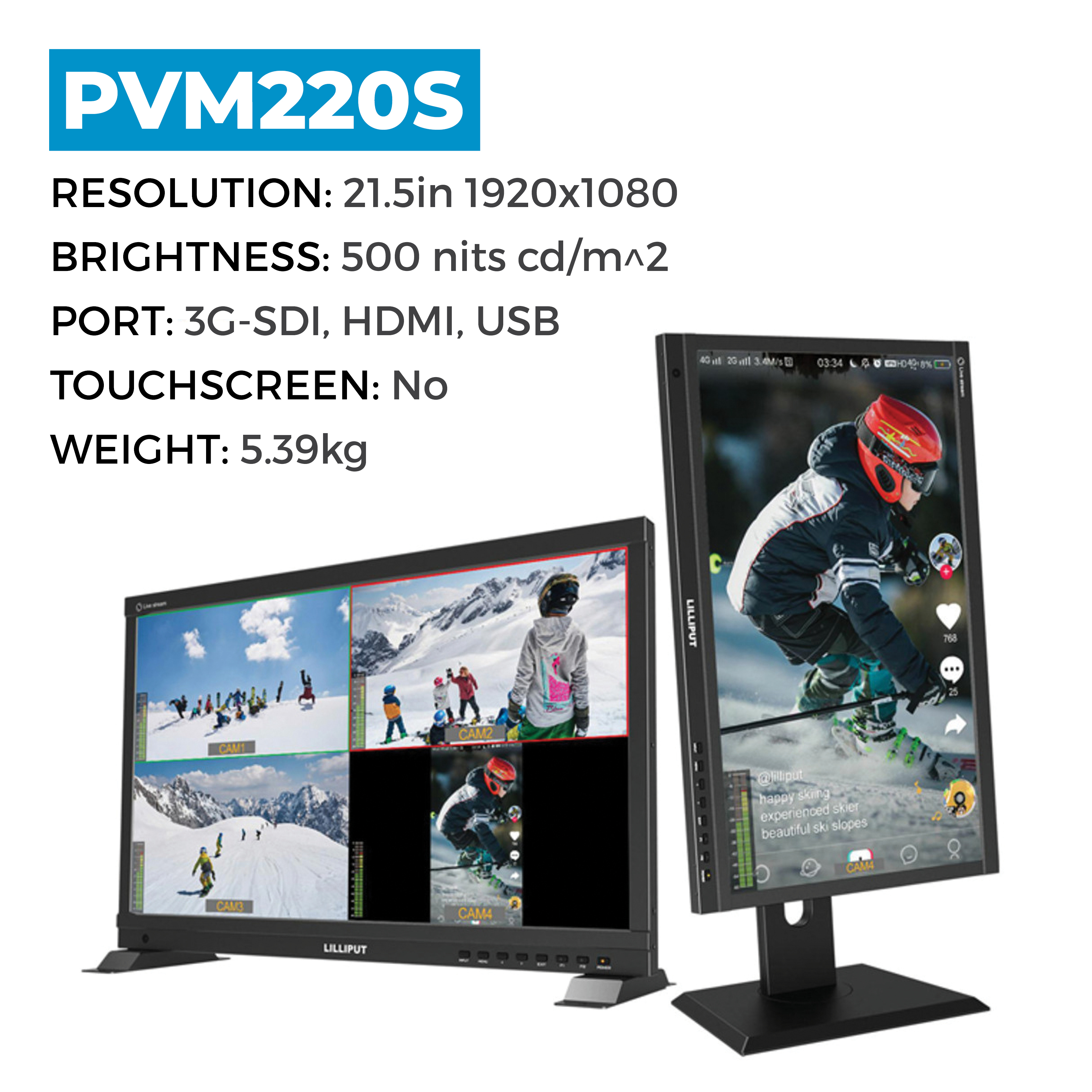

Lilliput PVM220S 21.5" 3G-SDI/HDMI Quad-Split Broadcast Monitor

The PVM220S 21.5" 3G-SDI/HDMI Broadcast Monitor from Lilliput features a quad-split display, preview and program output, and both horizontal and vertical display modes suitable for social media content. This 1920 x 1080 resolution monitor provides 3G-SDI, HDMI, and USB Type-C audio input and 3G-SDI and HDMI outputs. It offers 500 cd/m2 brightness, 1500:1 contrast, 2-channel on-screen audio monitoring, and multiple imaging tools for creating an accurate display.

Versatile Video Input and Output

• Dual 3G-SDI inputs, dual 3G-SDI outputs
• Dual HDMI inputs, single HDMI program output
• Single USB Type-C input

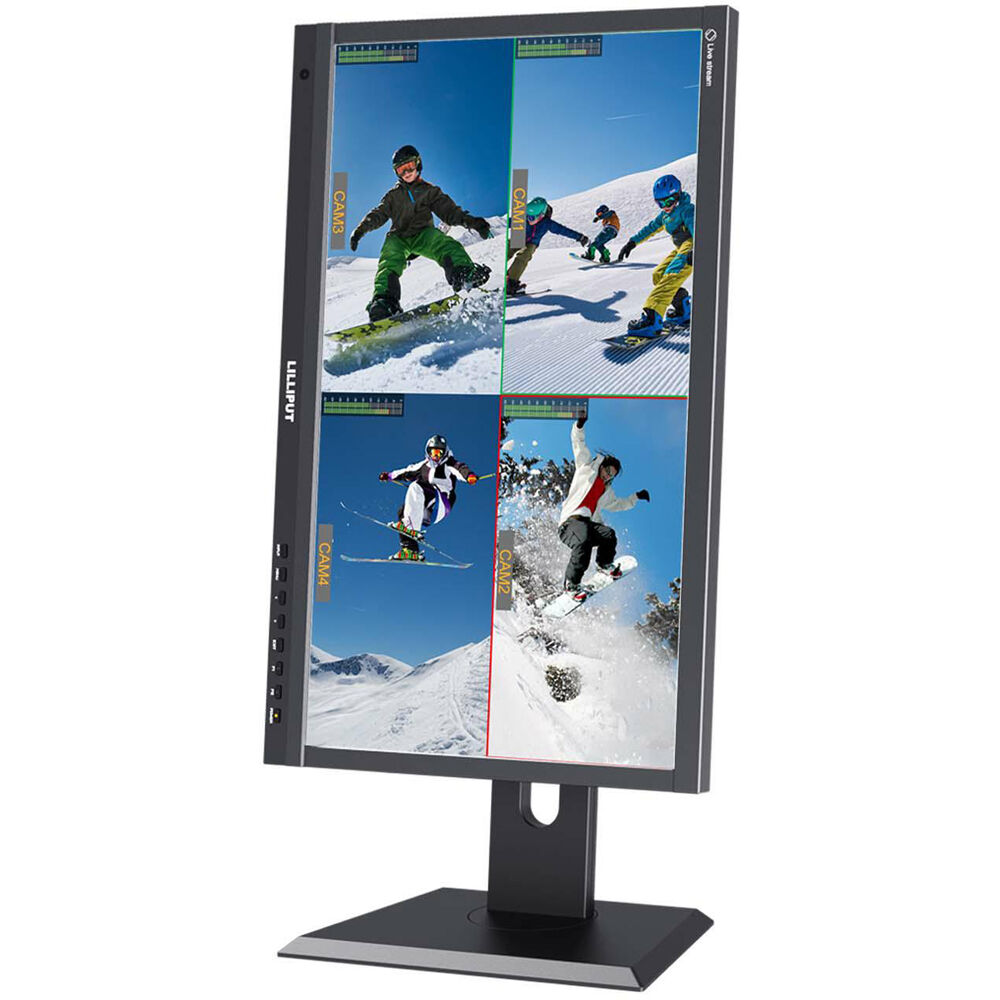

Quad-Split Multiview

Input and view up to four 1080p60 signals

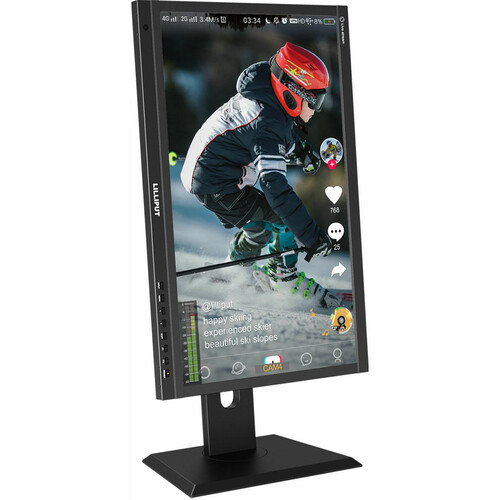

USB Vertical Display

USB Type-C input can be displayed vertically for social media-oriented content

Workflow

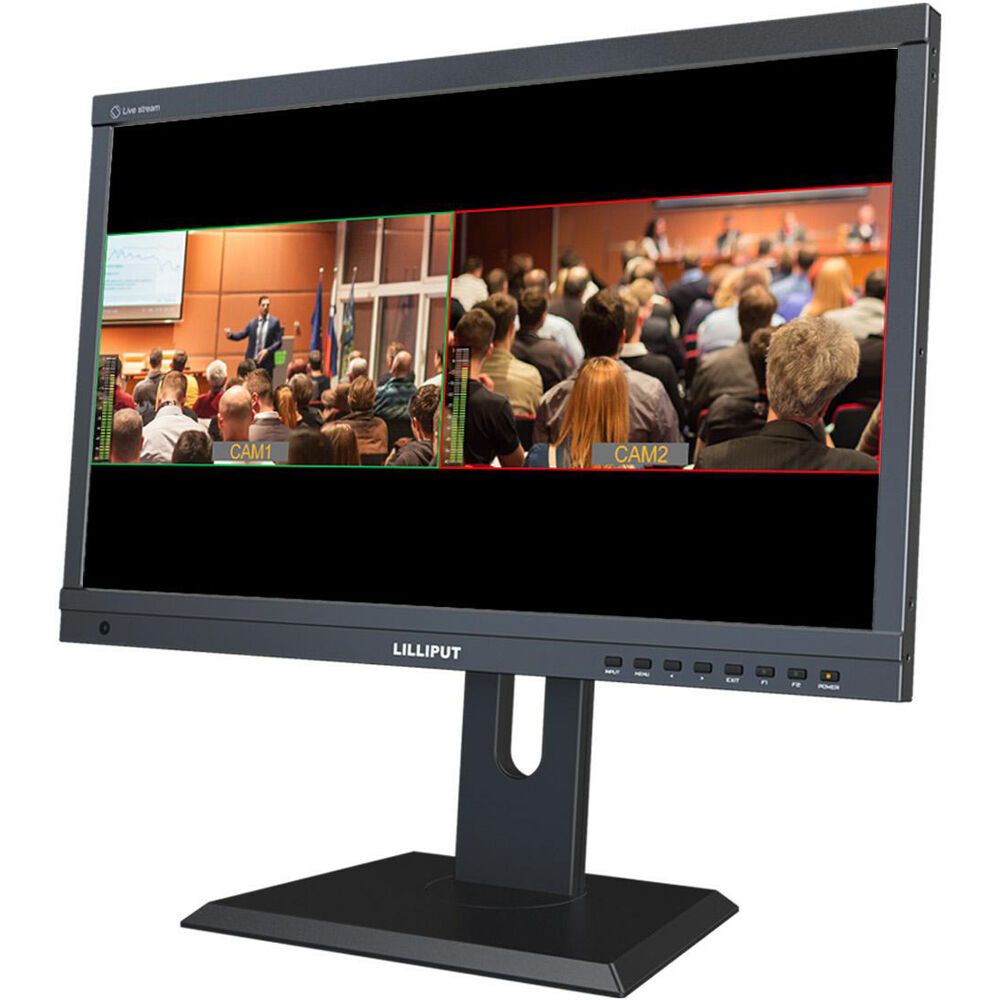

• Cut between preview and program for live mixing
• Pair with a router and your computer or phone for streaming

Audio

• Selectable audio monitoring enables you to keep an eye on your audio levels
• Supports 2-channel embedded audio

Imaging Tools

• Multiple tools for creating an accurate display include:Center and safety markers
• Focus peaking
• Histogram, zebra, and false color
• Color temperature selection
• Check field and freeze frame

Function Buttons

Two front-panel buttons can be assigned to your most-used functions

Versatile Mounting

• Wall mountable using its 75 x 100mm VESA pattern
• Tabletop support using the included feet

1. 21.5" 1920 x 1080 LCD Display
2. Quad-Split Multiview + Program Out
3. 500 cd/m² Brightness
4. 2-Ch Audio Level Monitoring
5. Histogram / Zebra / Peaking / Markers
6. 3G-SDI & HDMI In/Out, USB Type-C In
7. Horizontal & Vertical Display Modes
8. 1500:1 Contrast Ratio, 16:9 Aspect
