Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor

The Q17 is a broadcast monitor with 12G-SDI, carrying all the camera-assist features and audio/video analysis functions. It can also be remote controlled through a LAN port, GPI and RS422. It is designed for professional video and film industry use. This is the most full-featured professional video monitor on the market.

Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false color, focus peaking, check field, image flip, image freeze, selectable markers, and color temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.

Versatile Inputs/Loop Outputs

• 12G-SDI single/dual/quad link
• 3G-SDI
• HDMI 2.0

Color Calibration

Color Spaces

• SMPTE C
• Rec. 709
• EBU

Color Temperature

• 3200/5500/6500/7500/9300K
• Customizable settings

Gamma Options

• Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas

Remote Control

• LAN control
• RS-422 control
• Lissajous audio vector
• Audio levels

High Dynamic Range

• Selectable HDR offers greater detail in highlights and shadows
• Supports ST2084/ST2084 1000/HLG

Display Functions

• Quad-view
• False color
• Focus peaking
• Check field
• Image flip
• Image freeze
• Selectable markers
• Color temperature selection

Versatile Mounting

• Tabletop base
• Tilting bracket
• Carrying case
• Rack-mountable

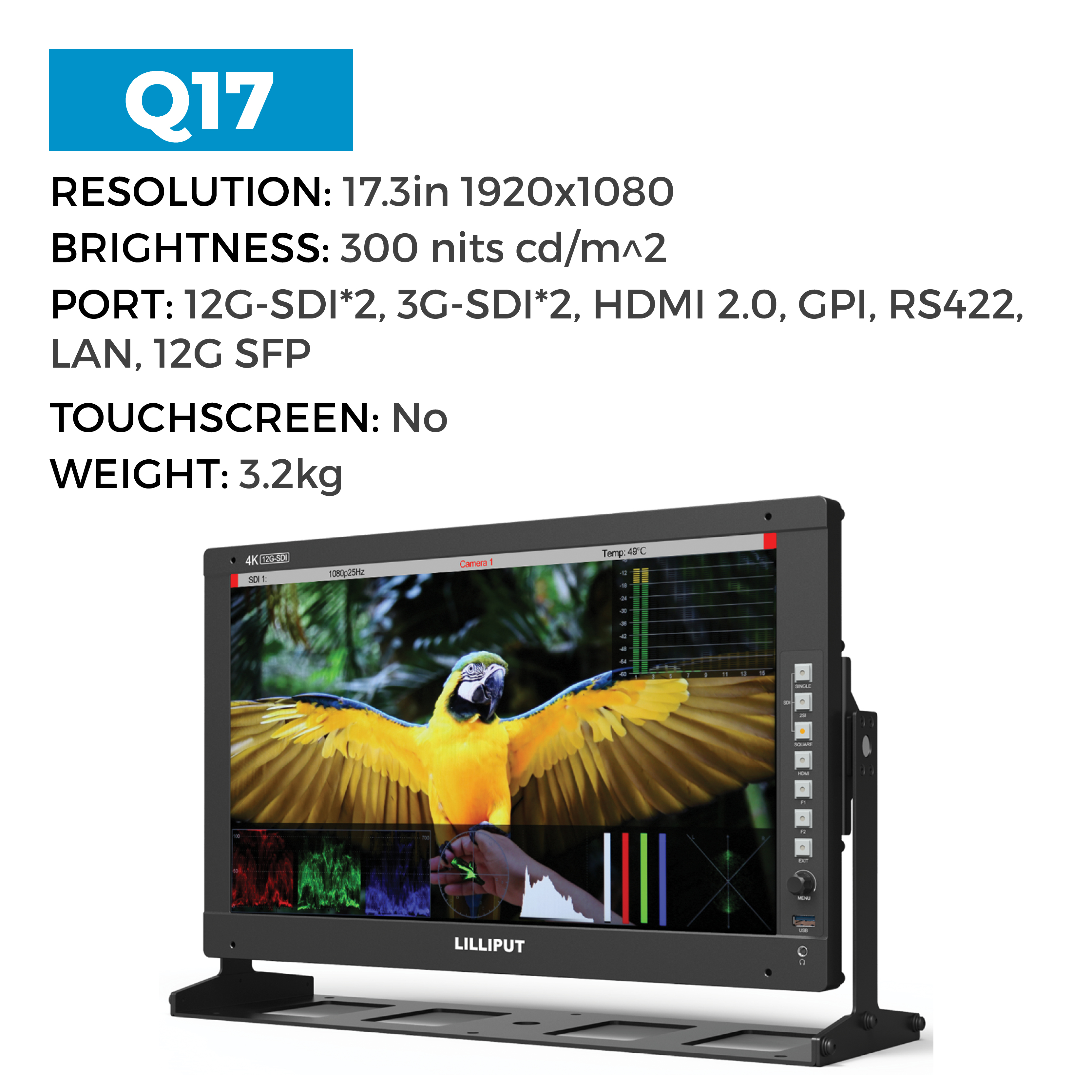

1. 17.3" Display 1920 x 1080 IPS LCD
2. 12G/3G-SDI & HDMI 2.0 Input/Loop Output
3. 1200:1 Contrast, 300cd/m² Brightness
4. Waveform/Vectorscope/Focus Peaking
5. Supports up to UHD 4K60 Input
6. HDR & 3D LUT Support
7. Single/Dual/Quad-Link 12G-SDI Input
8. 170°/170° Viewing Angle
