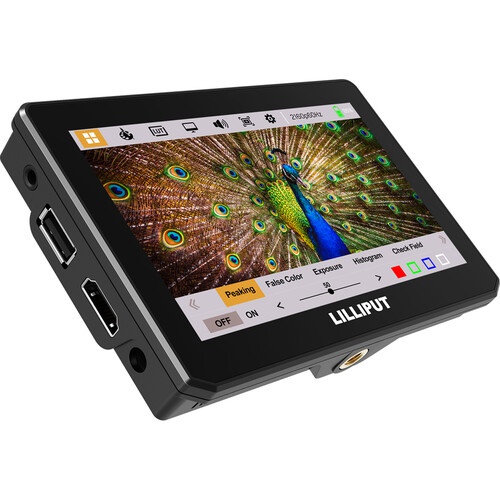

Lilliput T5 5 Inch Full HD Touchscreen Monitor With 4K Support

Compact, lightweight, and well suited for on-set work, the Lilliput 5" Touch On-Camera HDMI Monitor can handle DCI and UHD 4K as well as 1080p, 1080i, and 720p signals via its HDMI input. The monitor scales input video to its 1920 x 1080 IPS screen that provides you with a 1000:1 contrast ratio, 400 cd/m² maximum brightness, and a touchscreen interface.

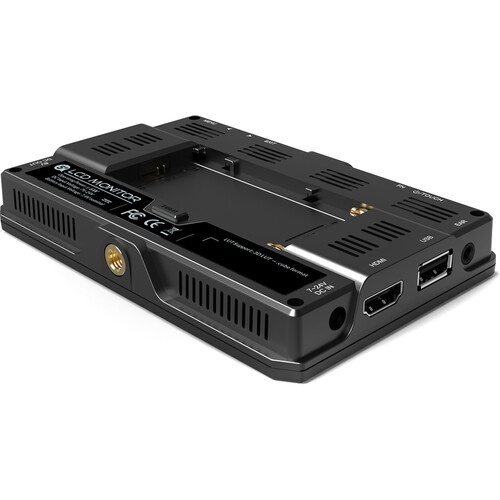

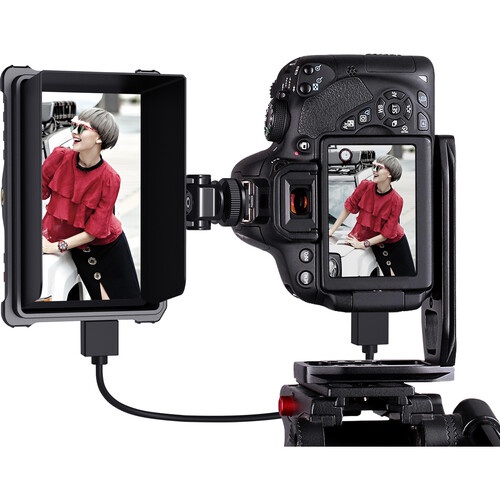

A push-button power switch and five buttons sit along the top of the monitor providing access to the on-screen menu system. The IPS LCD touchscreen has a 170° angle of view, side-to-side and top-to-bottom, and allows you to control and adjust the monitor using capacitive touch control. The monitor supports image and camera-related display tools that help ensure your images are in focus and properly exposed. Three 1/4"-20 threaded mounting holes enable mounting the monitor on your camera in a variety of positions.

Function Buttons:-

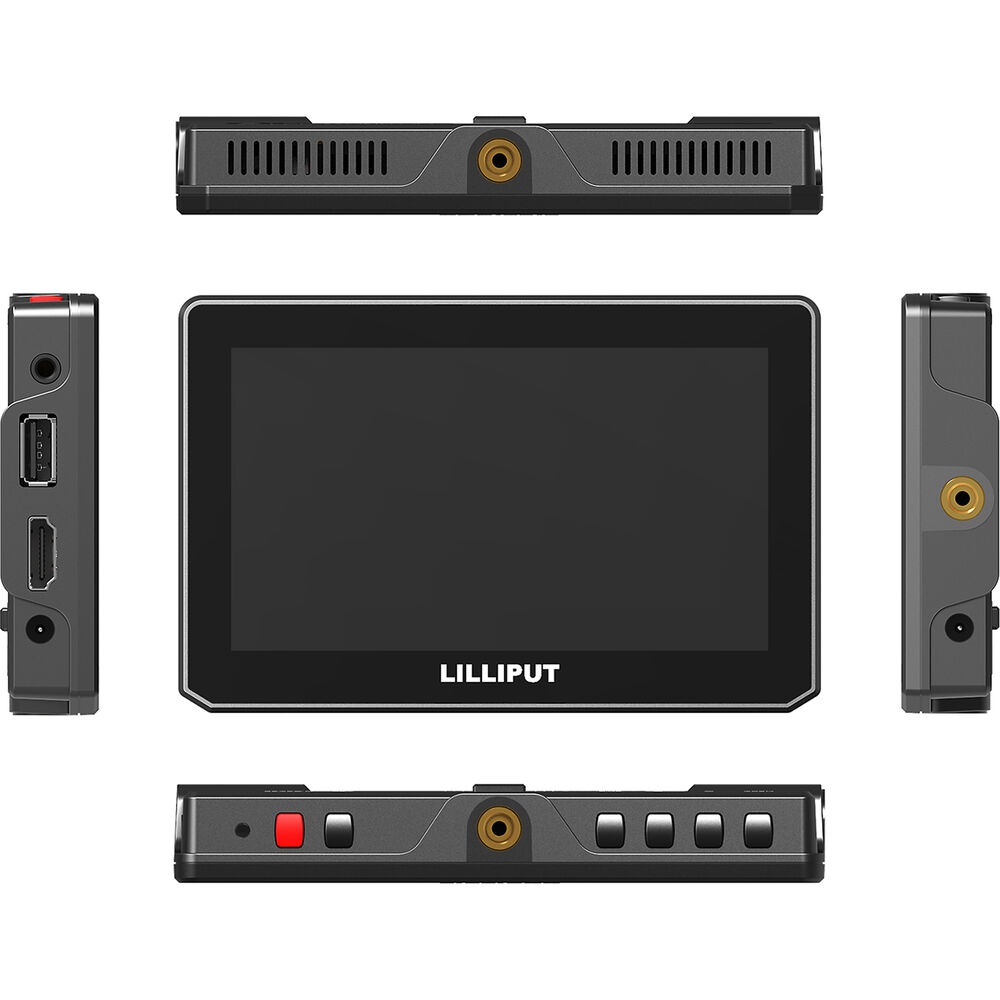

The five control buttons on top of the monitor allow you to navigate the on-screen menu system. A sixth button (red) powers the monitor on and off and activates the touch switch.

Touchscreen:-

The monitor features a touchscreen that allows you to access the monitor's signal status, menu settings, and function displays.

Functions:-

• The monitor supports the following: Audio level display
• Histogram
• False color
• User settable markers
• Focus peaking
• Zebra bars
• Check field
• Aspect ratio
• Zoom
• 3D LUT import (through the USB port)
• HDR
• Pixel zoom
• H/V delay
• Image flip
• One-to-one pixel
• Freeze frame

LUTs :-

You can apply a variety of real-time 3D LUTS.

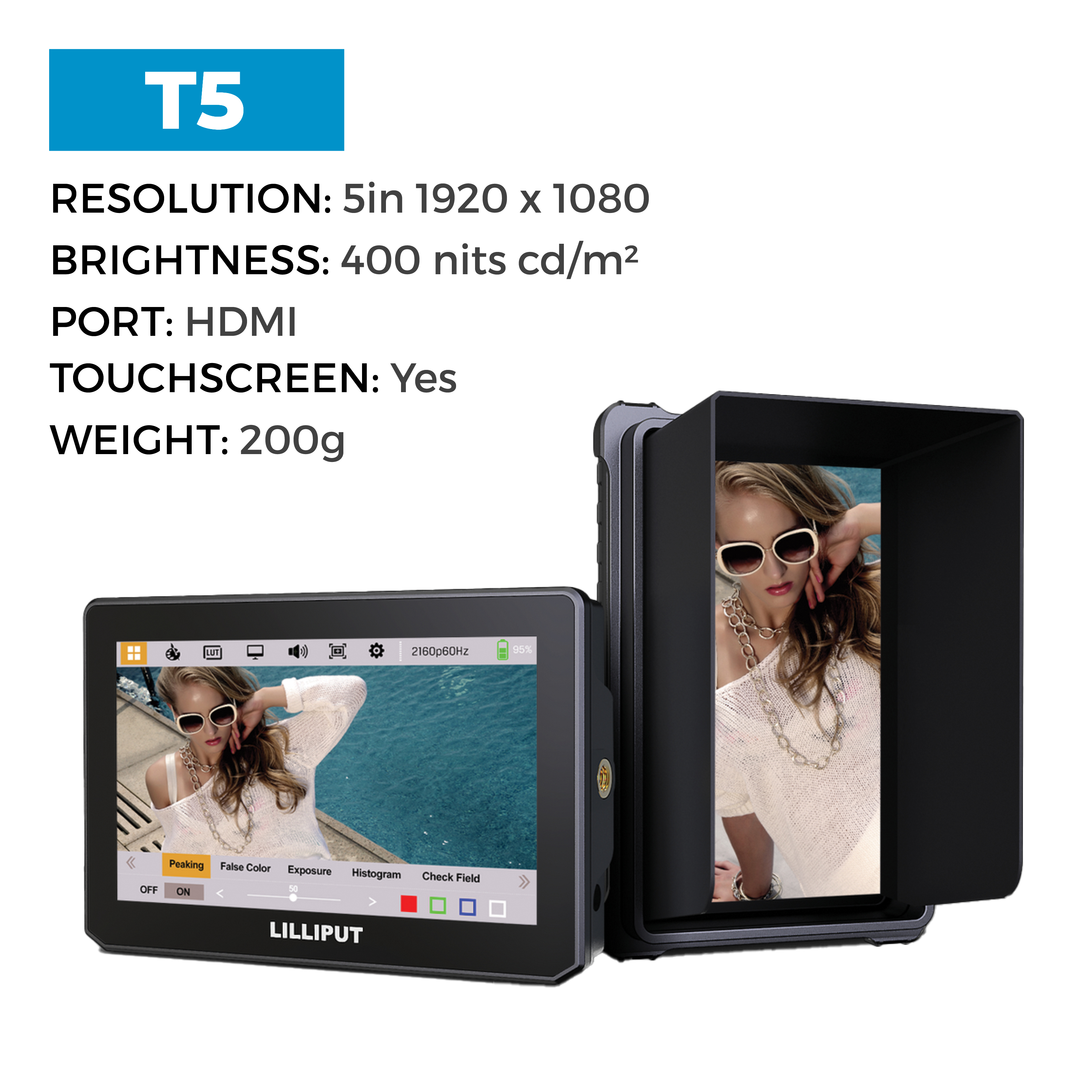

1. 5" 1920 x 1080 LCD Touchscreen Display
2. HDMI 2.0 Input Supports DCI & UHD 4K, HD
3. Supports HDR
4. 400 cd/m² Brightness
5. 1000:1 Contrast Ratio
6. 170° Viewing Angle
7. Top-Mounted Control Buttons
8. Focus Peaking
