Smallrig Brand Cage For Panasonic Lumix G9 Ii / S5 Ii / S5 Iix 4022
No reviews yet
SKU: Rig-small-pan-4022
✓ In Stock (0 available)

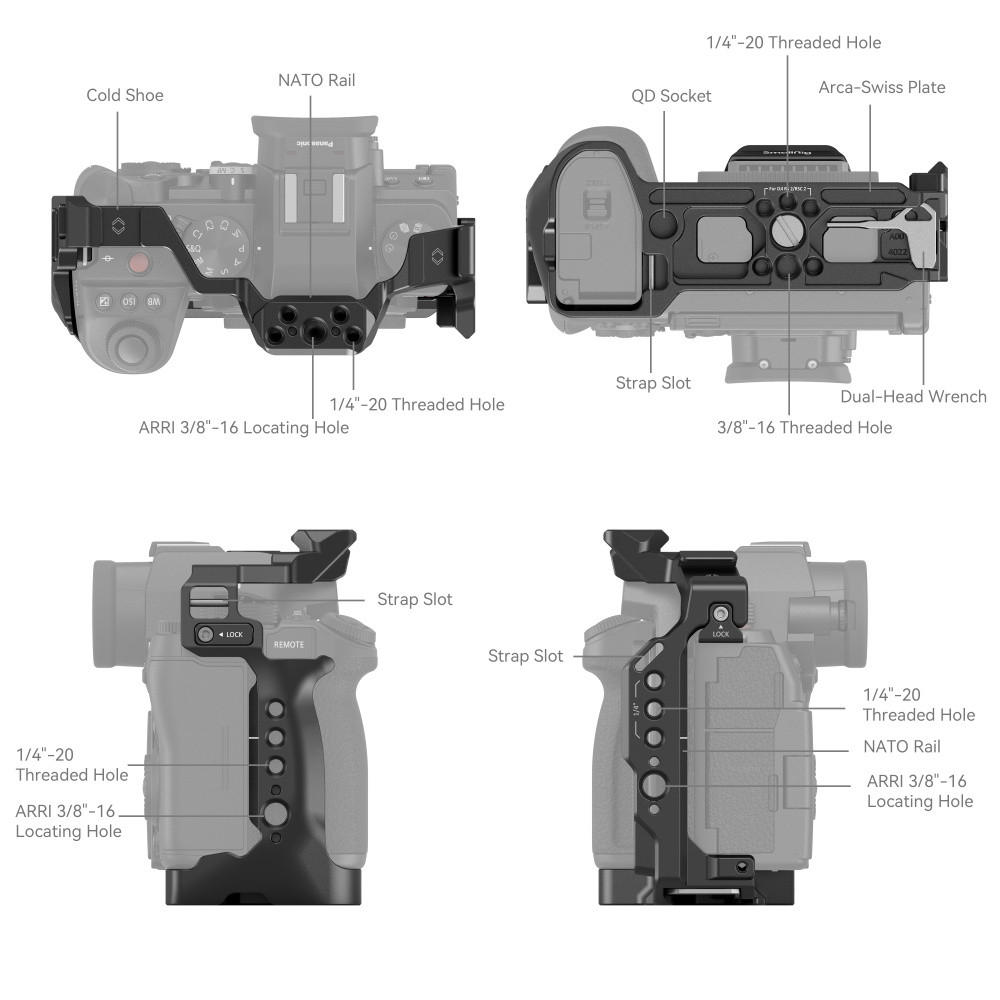

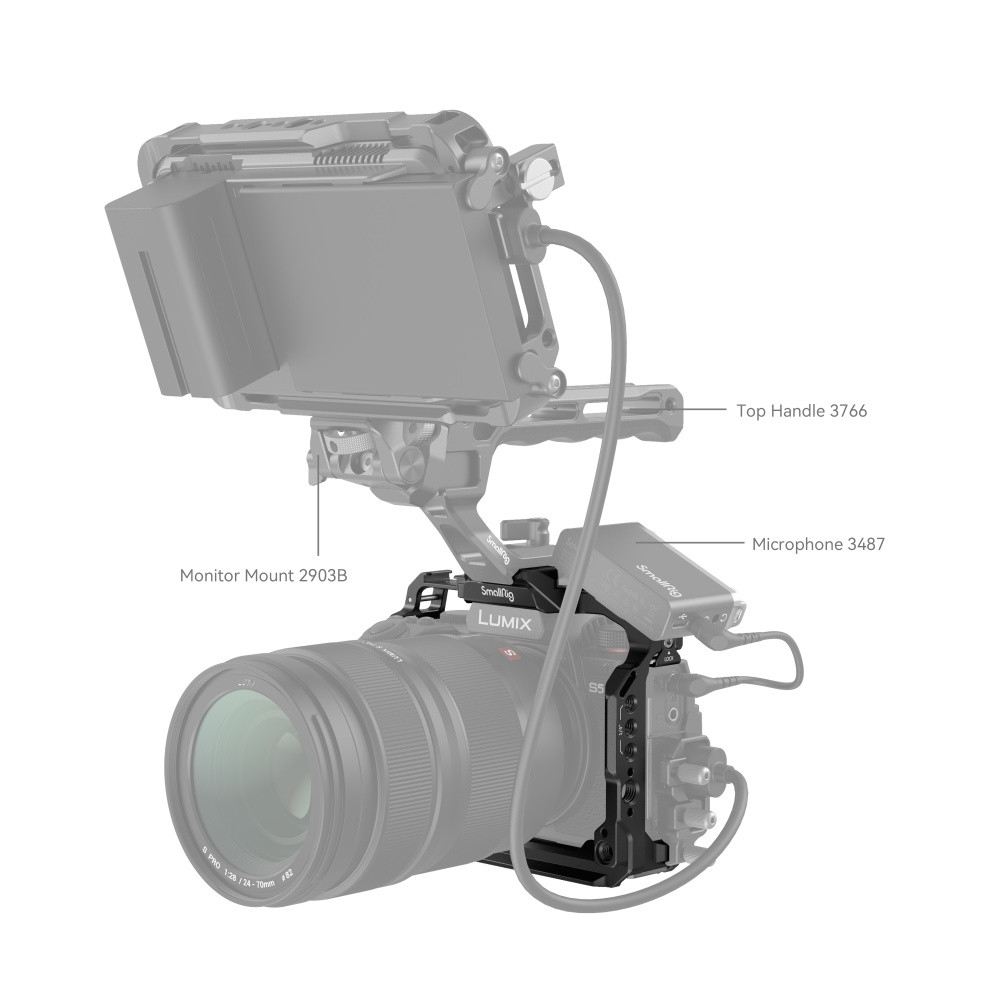

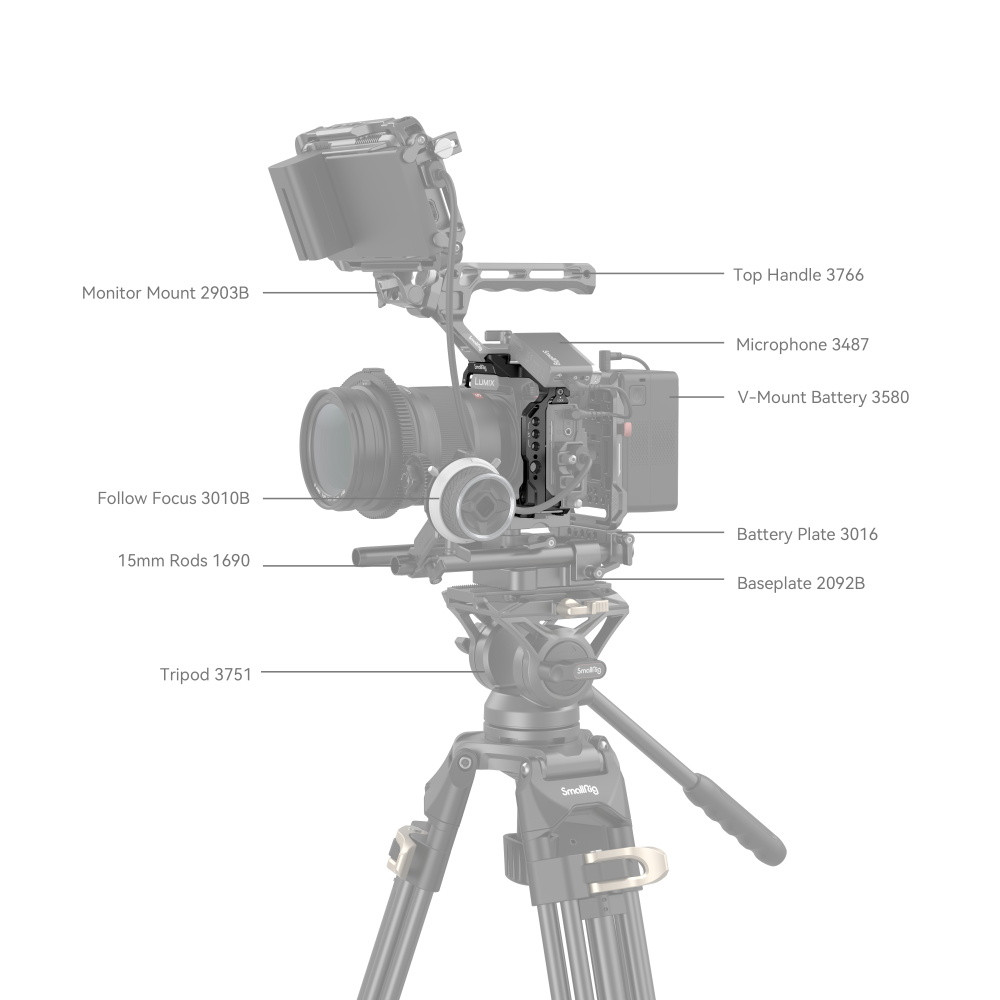

♡ Sign in to save to WishlistSmallRig Cage for Panasonic LUMIX G9 II / S5 II / S5 IIX 4022 is designed to attach accessories and protect the camera. It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratches. Among its accessory mounting points, 1/4"-20 holes and ARRI 3/8"-16 locating holes support Top Handle 2165C, Side Handle 2093, etc. for easy camera movement and more stability; the front 1/4"-20 locating hole suits Rod Clamp 3276 for follow focus system; and the top ARRI 3/8"-16 locating hole fits Monitor Mount 2903B. It also comes with two cold shoe mounts to attach a microphone, and LED video light; a top NATO rail for Top Handle 3322; a left NATO rail for Side Handle 3847; and a bottom QD socket to install the QD shoulder strap. At the bottom, there is an Arca-Swiss quick-release plate, suitable for DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals and Arca-Swiss tripods, as well as a threaded hole for DJI RS 2 / RSC 2 gimbal quick-release plate (height increase pad) and Arca-Swiss Quick Release Plate 3154. The item also features strap holes on both sides and the bottom, which are compatible with Hand Strap PAC2456, Shoulder Strap PSC2428, etc. Besides, a magnetic wrench is included for easy disassembly and assembly.
Note:

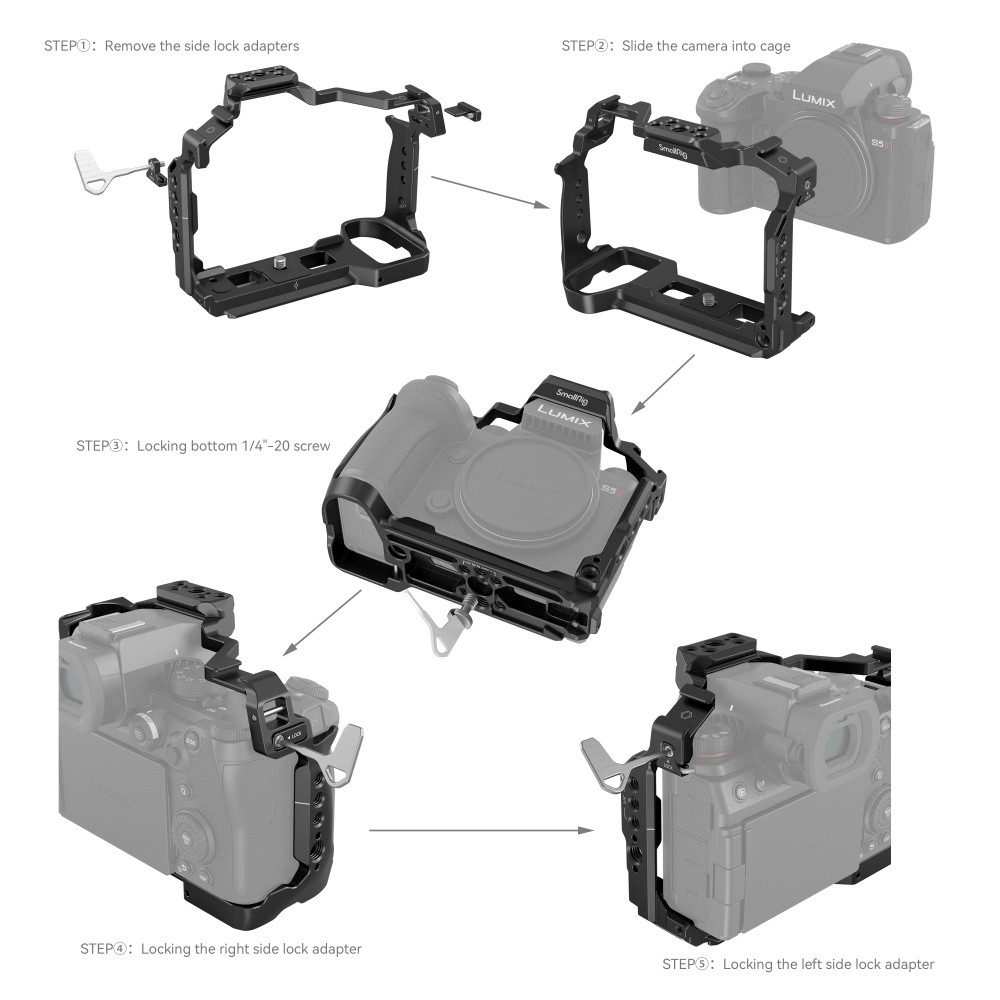

1. Please remove the side lock adapters before installing this cage.
2. This cage is compatible with Panasonic DMW-XLR1, if you need to use it with a top handle, we recommend the Top Lift Handle 3082.
3. For using HDMI & USB-C cable clamp, SmallRig Camera Cage Kit for Panasonic LUMIX S5 II / S5 IIX 4143 is recommended.
Work With
- Panasonic LUMIX G9 II
- Panasonic LUMIX S5 II
- Panasonic LUMIX S5 IIX
- All-in-one full cage protects the camera and improves grip experience.
- NATO rails at the top and on the left side.
- Two cold shoe mounts at the top for the microphone, LED video light, etc.
- Anti-twist three-point locking design.

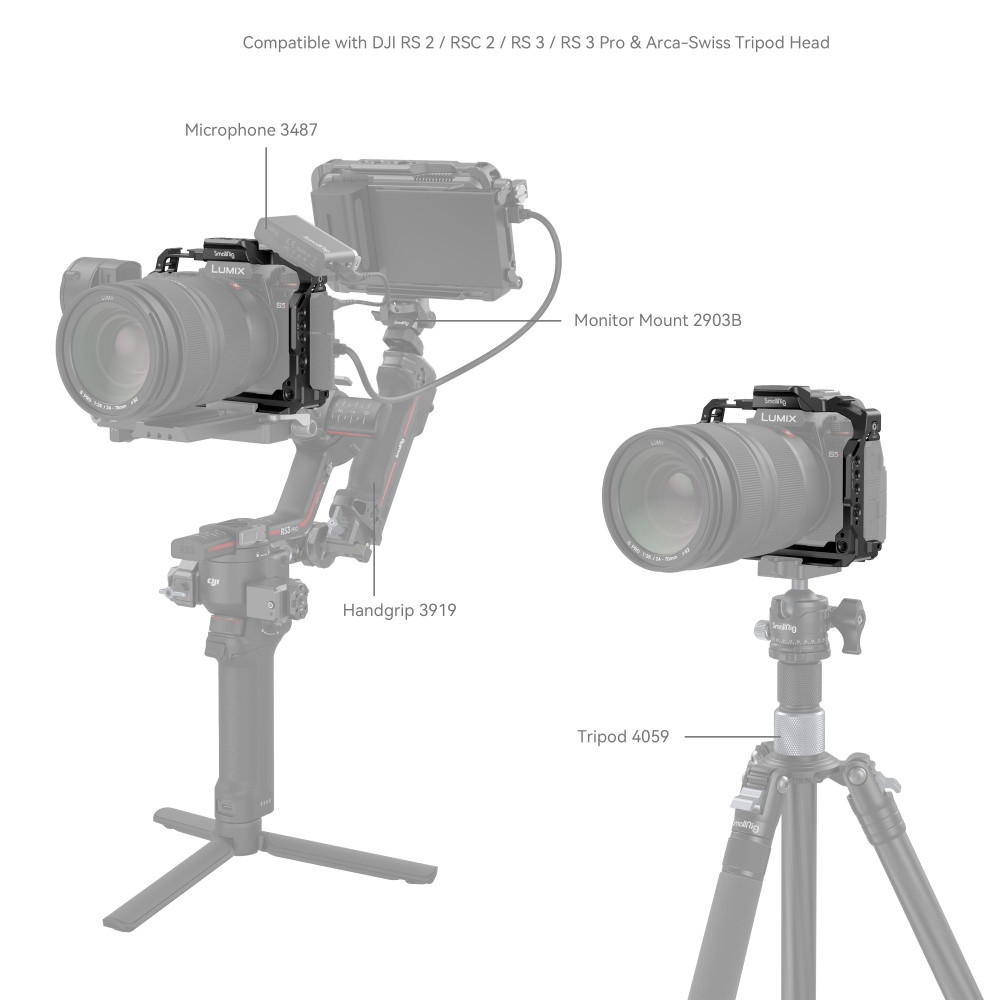

- The Arca-Swiss bottom plate supports the Arca-Swiss tripod and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbals.
| Support Type |
Cage |
| Grip Type |
No |
| Camera Compatibility |
Panasonic DC-G9 II, Panasonic DC-S5 II, Panasonic DC-S5 IIX |
| Rod Standard |
Not Specified by Manufacturer |
| Battery Plate Type |
No |
| Accessory Mounting |
Multiple 1/4"-20 Female Thread, Multiple 3/8"-16 Female Thread, 1x QD (Quick Detach) |
| Camera Mounting |
Arca-Type Plate with 1/4"-20 Male Screw |
| Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread, Built-In Arca-Type Plate |
| Shoe Mounting |
2x Cold Shoe |
| Rosettes |
No |
| Rail Mounting (Side, Top) |
1x NATO Rail |
| Materials |
Aluminum, Steel |

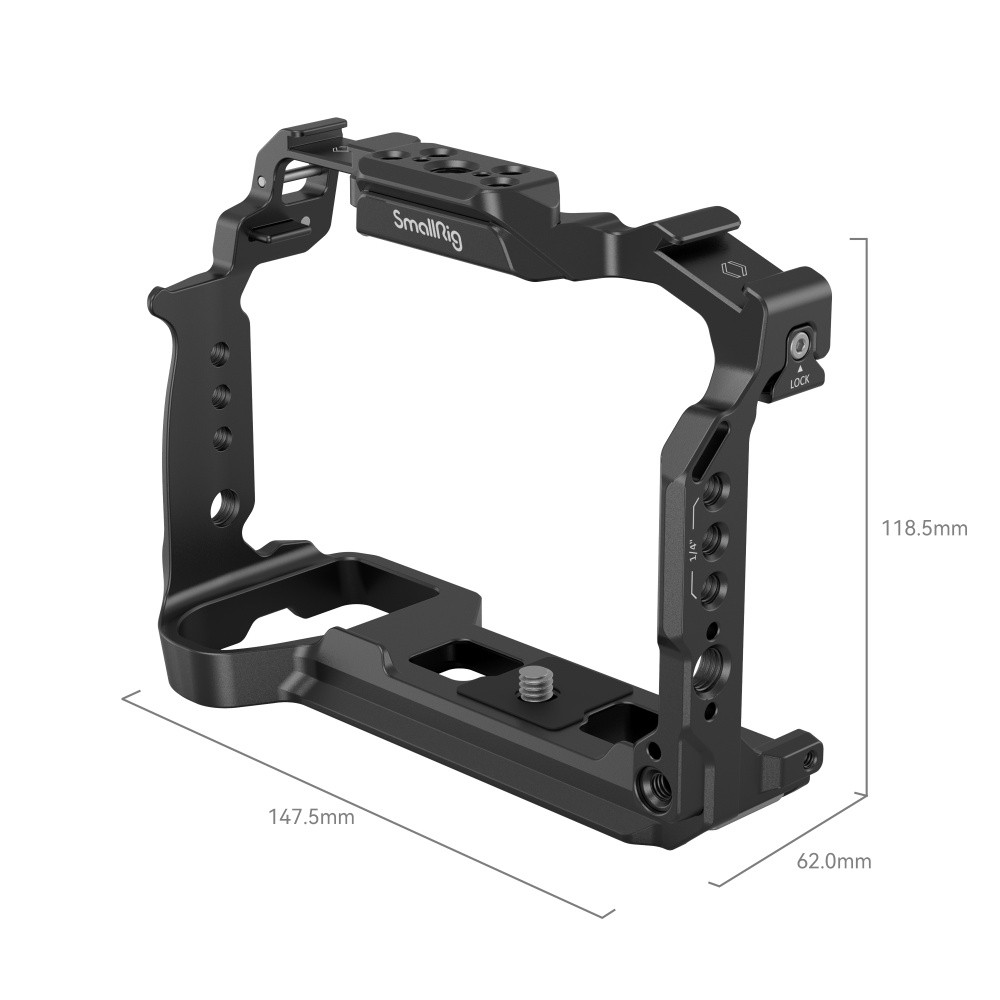

| Dimensions |
14.75 x 11.85 x 6.2 cm |
| Weight |
161 g |
| Country Of Origin |
China |
| Manufacturer |
SmallRig |
